Staubli (Multi-Contact) MC4 Connectors
As an experienced specialist and market leader for electrical connectors in photovoltaics, Staubli (Multi-Contact) offer long-lasting quality components that help to reduce operational and maintenance cost.
Staubli (Multi-Contact) have more than 20 years of experience connecting any type of PV system and guarantee proper operation with our connectors throughout their lifetime (>25 years). Staubli ensures highest performance reliability and maximum safety.
SolarTech Saarthi Pvt. Ltd. is one of the leading stockists of Staubli MC4 connectors in Delhi NCR. Contact our team for the best prices of Staubli MC4 connectors and immediate deliveries.
Original MC4 Connectors
Staubli Make (Multi-Contact) MC4 Connectors comes with Snap-in lock mechanism. Mitigate power loss, downtimes, service hours, risk of fire of your PV-System by using Original MC4. The unique MULTILAM contact technology will guarantee an excellent long-term reliability and a low contact resistance over the entire product life.
| S.No. | Properties | Specification |
|---|---|---|
|
1 |
Part No. |
32.0016P0001-UR/ 32.0017P0001-UR
(PV-KBT4/6II-UR/ PV-KST4/6II-UR) |
|
2 |
Rated Voltage |
1000 V DC (IEC)/
1500 V DC (UL) |
|
3 |
Degree of Protection |
IP65, IP68 (1h/1m) |
|
4 |
Contact Material |
Copper, Tin Plated |
|
5 |
Contact Resistance |
Less than 0.25 mOhm |
Original MC4 Connectors - EVO 2
The original MC4-Evo 2 guarantees high performance even in harsh environment. Further it combines best-in-class features for DC PV connectors such as:
- V 1500 DC certified (TUV / UL / JET)
- Maximum current rating 69A
- Salt mist spray test & ammonia resistant
| S.No. | Properties | Specification |
|---|---|---|
|
1 |
Part No. |
32.0088P0001-UR/ 32.0089P0001-UR
(PV-KBT4-EVO 2/6II-UR/ PV-KST4-EVO 2/6II-UR) |
|
2 |
Rated Voltage |
1500 V DC (TUV)/
1500 V DC (UL)/ 1500 V DC (JET) |
|
3 |
Degree of Protection |
IP65, IP68 (1h/1m) |
|
4 |
Contact Material |
Copper, Tin Plated |
|
5 |
Contact Resistance |
Less than 0.2 mOhm |
MC4 Panel Receptacle
The MC4 panel receptacle can be directly mounted, by means of screw thread. It is the ideal solution to connect your MC4 or MC4-Evo 2 cable coupler as a string input to an inverter.
Original MC4 panel receptacle being interchangeable with the entire MC4 product family
| S.No. | Properties | Specification |
|---|---|---|
|
1 |
Part No. |
32.0078P0001-UR/ 32.0079P0001-UR
(PV-ADBP4-S2/6-UR/ PV-ADSP4-S2/6-UR) |
|
2 |
Rated Voltage |
1250 V DC (TUV)/
1500 V DC (UL) |
|
3 |
Degree of Protection |
IP65, IP68 (1h/1m) |
|
4 |
Contact Material |
Copper, Tin Plated |
|
5 |
Contact Resistance |
Less than 0.25 mOhm |

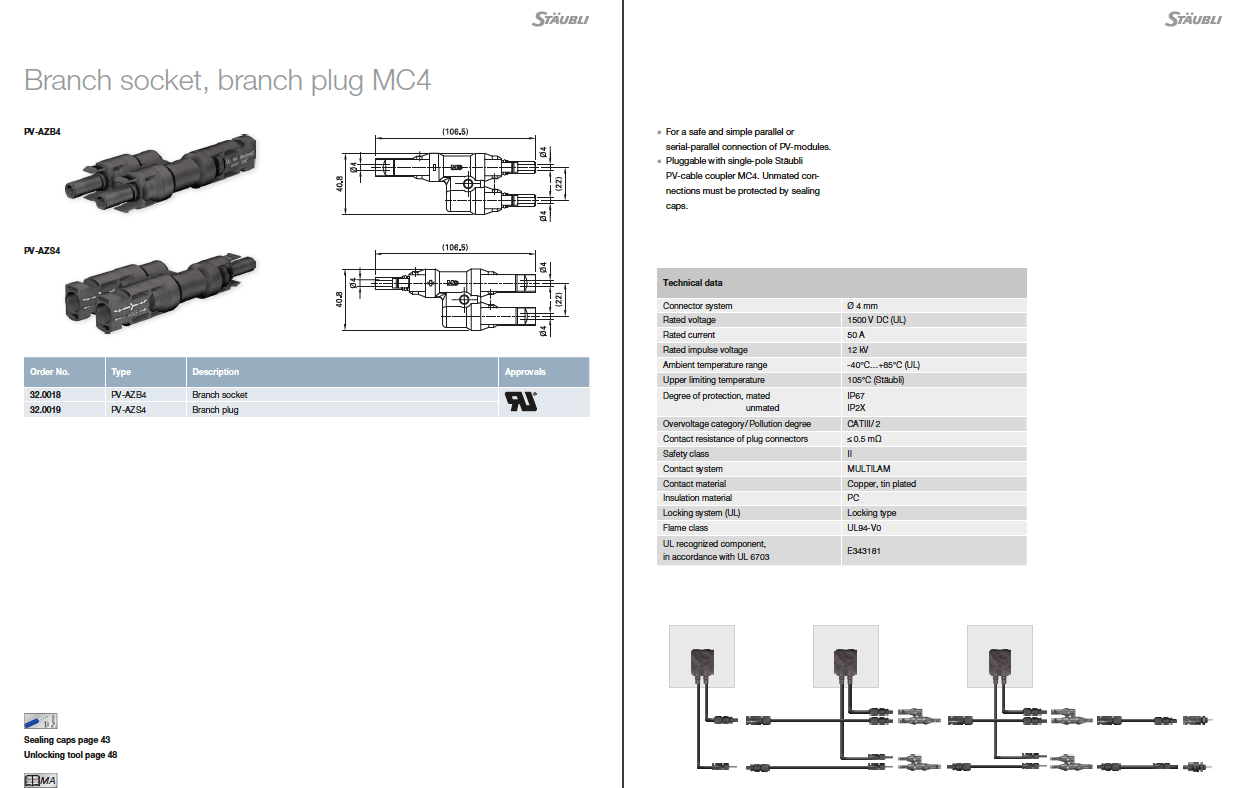

Branch Connectors
Easy installation, as no crimping or torquing is necessary. Mating compatibility with MC4 and MC4-Evo 2 connector. Rated at DC 1500 V according to UL 6703.
| S.No. | Properties | Specification |
|---|---|---|
|
1 |
Part No. |
32.0018 / 32.0019 (PV-AZB4 / PV-AZS4) |
|
2 |
Rated Voltage |
1500 V DC (UL) |
|
3 |
Degree of Protection |
IP 67 |
|
4 |
Contact Material |
Copper, Tin Plated |
|
5 |
Contact Resistance |
Less than 0.5 mOhm |
